DETAILED INFORMATION
Request a QGF Series Quote Contact Our Sales Team

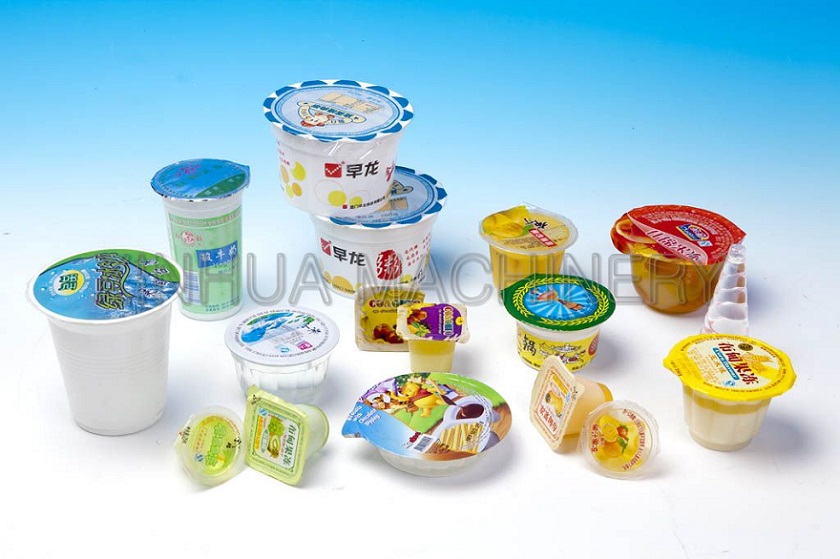

The QGF series automatically fills and seals wide-mouth plastic cups, boxes and bowls. Models are available for different production outputs.
Applications include yogurt, jelly, pudding, milk, fermented milk, tofu, drinking water and semi-fluid pastes. Please share your product, container and sealing-film requirements to confirm the appropriate configuration.
Cup feeding → filling → coding → photoelectric alignment → first sealing → second sealing → cutting → waste-film collection → finished pack discharge.

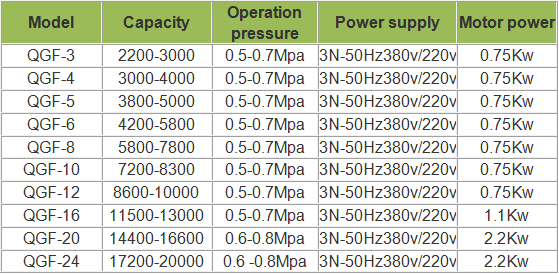

| Model | Filling volume (ml) | Output (cups/hour) | Air pressure (MPa) | Motor power (kW) |
|---|---|---|---|---|
| QGF-3 | 10–350 | 2,200–3,000 | 0.5–0.7 | 0.75 |
| QGF-4 | 10–350 | 3,000–4,000 | 0.5–0.7 | 0.75 |
| QGF-5 | 10–350 | 3,800–5,000 | 0.5–0.7 | 0.75 |
| QGF-6 | 10–350 | 4,200–5,800 | 0.5–0.7 | 0.75 |
| QGF-8 | 10–350 | 5,800–7,800 | 0.5–0.7 | 0.75 |
| QGF-10 | 10–350 | 8,500–10,000 | 0.5–0.7 | 0.75 |
| QGF-12 | 10–350 | 8,600–10,000 | 0.5–0.7 | 0.75 |
| QGF-16 | 10–350 | 11,500–13,000 | 0.5–0.7 | 1.1 |
| QGF-20 | 10–350 | 14,400–16,600 | 0.6–0.8 | 2.2 |
| QGF-24 | 10–350 | 17,200–20,000 | 0.6–0.8 | 2.2 |
Power supply for the models listed: 3N–50 Hz, 380 V / 220 V. Please confirm the specified filling range and output against your product, cup format and selected configuration before ordering.
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
Overseas sales: xinhua@xinhuacn.com
