DETAILED INFORMATION
Request a ZLD Series Quote Contact Our Sales Team
The ZLD series automatically fills and screw-caps stand-up pouches. Compare the models below to select a filling range and production output for your packaging requirements.

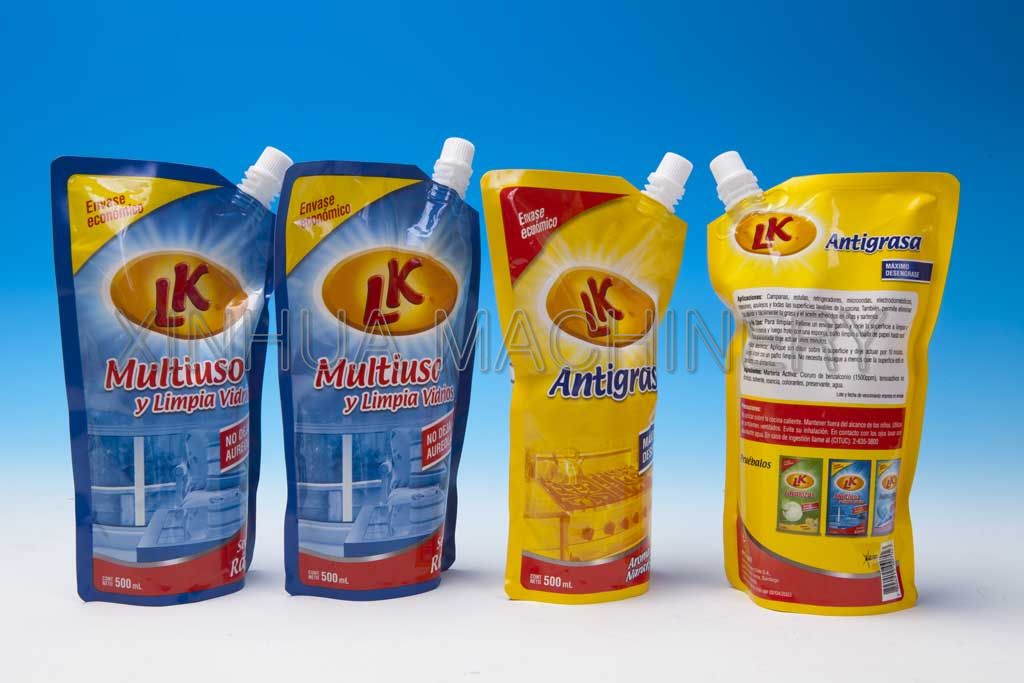

Applications include fruit jam, chocolate sauce, juice, milk, soybean milk, jelly, beverages and cleaning agents. Please provide product, pouch and cap details to confirm suitability.
Pouch feeding → measured filling → spout cleaning → cap feeding → screw capping → finished pouch discharge.

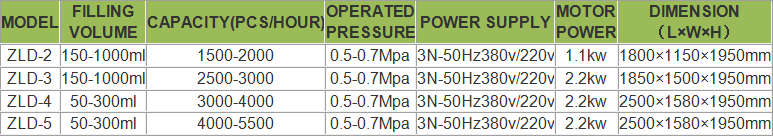

| Model | Filling volume (ml) | Output (pouches/hour) | Motor power (kW) | Dimensions L × W × H (mm) |
|---|---|---|---|---|
| ZLD-2 | 150–1000 | 1,500–2,000 | 1.1 | 1800 × 1150 × 1950 |
| ZLD-3 | 150–1000 | 2,500–3,000 | 2.2 | 1850 × 1500 × 1950 |
| ZLD-4 | 50–300 | 3,000–4,000 | 2.2 | 2500 × 1580 × 1950 |
| ZLD-5 | 50–300 | 4,000–5,500 | 2.2 | 2500 × 1580 × 1950 |
Working air pressure for the models listed: 0.5–0.7 MPa. Power supply: 3N–50 Hz, 380 V / 220 V. Please confirm the required model and output against your product, pouch format and configuration before ordering.
View ZLD-5 specifications and configuration options
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
Overseas sales: xinhua@xinhuacn.com
