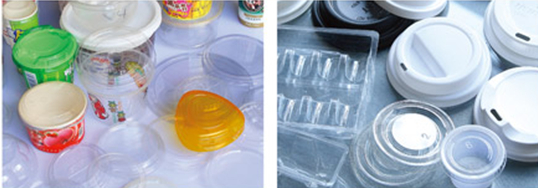

The CQ-450 automatically forms, punches and cuts plastic sheet into cup lids, trays and packaging containers. It processes PVC, PS and PET sheets.
Suitable for producing packaging components used in food, daily chemical, hardware and other industries. Send your sheet specification and finished product drawing to confirm mould and machine requirements.
Sheet feeding and thermoforming → punching → cutting → edge scrap collection.
| Specification | Details |
|---|---|
| Model | CQ-450 |
| Cutting rate | 15–30 cycles/min |
| Power supply | 380 V / 220 V, 50 Hz |
| Feed stroke range | 40–150 mm |
| Maximum forming area | 450 × 150 mm |
| Maximum forming depth | 46 mm |
| Upper forming heater power | 2.0 kW |
| Lower forming heater power | 2.0 kW |
| Motor power | 1.5 kW |
| Working air pressure | 0.4–0.6 MPa |
| Air consumption | 1 L/min |
| Air pump flow rate | 1 L/min |
| Mould cooling | Cooling water; specified consumption: 60 L/hour |
| Sheet dimensions (thickness × width) | 0.1–0.6 × 450 mm |
| Dimensions (L × W × H) | 2700 × 1100 × 1700 mm |
| Machine weight | 1800 kg |
Please confirm utilities, sheet suitability and mould requirements for your packaging.
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
