XH-8 Shaped Pouch Filling and Sealing Machine

Request a XH-8 Quote Contact Our Sales Team

Overview

The XH-8 fills and seals shaped pouches. Operators load the pouches manually; filling, pouch pressing, sealing and finished pouch discharge run automatically.

Applications

Liquid beverages, jelly, Japanese tofu and other suitable products in shaped pouches. Send the pouch drawing, sealing material and product details to confirm suitability.

Operating Process and Features

Manual pouch loading → filling → pouch pressing → sealing → finished pouch discharge.

Manual loading with automatic subsequent processing.
Filling and sealing configuration selected for the product and pouch format.

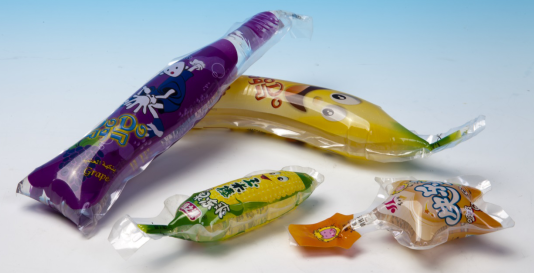

XH-8 packaging example

Technical Specifications

Specification	Details
Model	XH-8
Pouch loading	Manual
Filling volume	50–500 ml
Output	2,000–3,500 pouches/hour
Working air pressure	0.5–0.7 MPa
Power supply	220 V
Power	1.5 kW
Machine weight	180 kg
Dimensions (L × W × H)	1200 × 700 × 1550 mm

Please confirm output, filling range, packaging dimensions and utilities for your product and selected configuration before ordering.

Related Machines

Share your product and packaging requirements so we can help compare suitable configurations.

Request a Quote

For machine selection and a quotation, please tell us your product, packaging dimensions, filling quantity, required output and destination country. Include a packaging drawing or sample photo if available.
