DETAILED INFORMATION
Request a QGF-Z350 Quote Contact Our Sales Team

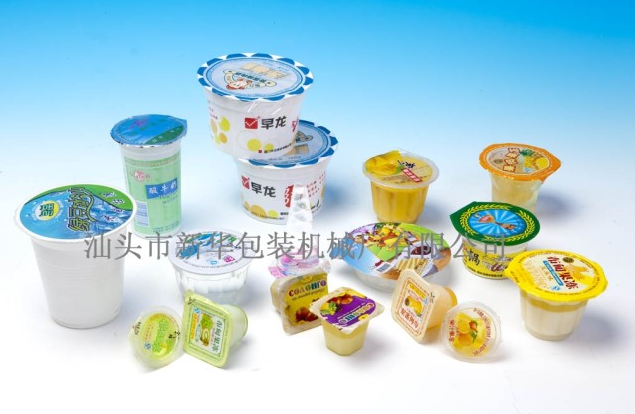

The QGF-Z350 forms plastic cups or boxes, fills the product, seals the packaging and cuts the finished packs. It supports PVC, PS and PET sheet materials.

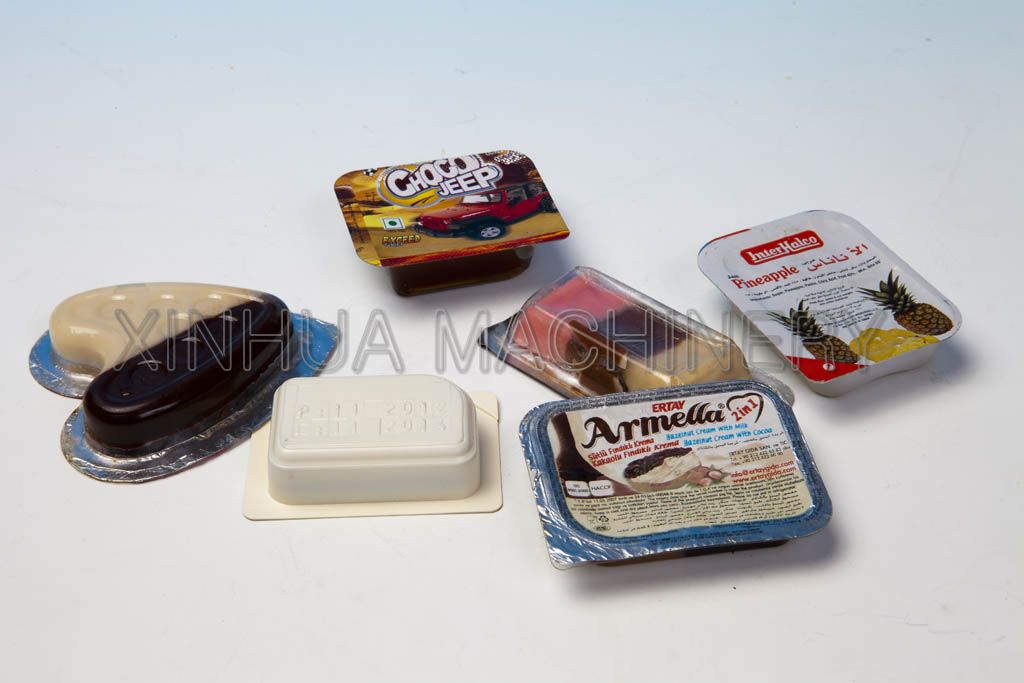

Applications include tomato sauce, fruit jam, chocolate sauce and butter, as well as biscuits and candies. Please provide product samples and packaging requirements to confirm the appropriate filling configuration.
Cup or box forming → filling → photoelectric alignment → sealing → cutting and separating → finished pack discharge.
| Specification | Details |
|---|---|
| Model | QGF-Z350 |
| Maximum forming area and depth | 190 × 340 × 26 mm |
| Standard plate | 80 × 57 mm; customizable |
| Sealing and cutting rate | 15–50 cycles/min |
| Stroke range | 40–160 mm |
| Sheet dimensions (thickness × width) | 0.15–0.4 × 350 mm |
| Main motor power | 2.2 kW |
| Power supply | 3N–50 Hz, 380 V / 220 V |
| Working air pressure | 0.5–0.6 MPa |
| Air consumption | ≥ 0.3 m³/min |
| Mould cooling | Tap water or recirculating water |
| Dimensions (L × W × H) | 4000 × 790 × 1750 mm |
| Machine weight | 2000 kg |
The sealing and cutting rate is expressed in cycles per minute. Please confirm the required configuration before ordering.
Share your product and packaging requirements so we can help compare suitable configurations.
For machine selection and a quotation, please tell us your product, packaging size, required output and destination country. Attach a packaging drawing or sample photo if available.
