BGF Series Bottle Filling and Sealing Machines

Request a BGF Series Quote Contact Our Sales Team

Overview

The BGF series fills and seals narrow-neck plastic bottles. Available models cover different filling ranges and production outputs.

Applications

Fruit milk, yogurt, fresh milk, soybean milk, beverages, drinking water and other liquid products. Product viscosity, bottle dimensions and sealing material should be confirmed before machine selection.

Operating Process and Features

Filling → bottle sealing-cap cutting and forming → sealing → cooling → finished bottle discharge.

Automatic operation of filling and sealing processes.
Optional date-coding unit.
Pneumatic components can be selected to suit production requirements.

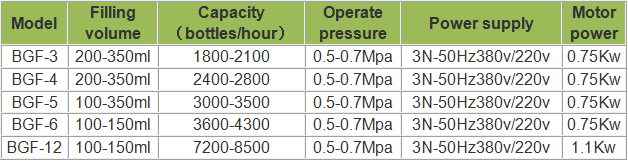

Technical Specifications

Model	Filling volume (ml)	Output (bottles/hour)	Motor power (kW)
BGF-3	200–350	1,800–2,100	0.75
BGF-4	200–350	2,400–2,800	0.75
BGF-5	100–350	3,000–3,500	0.75
BGF-6	100–150	3,600–4,300	0.75
BGF-12	100–150	7,200–8,500	1.1

Working air pressure: 0.5–0.7 MPa. Power supply: 3N–50 Hz, 380 V / 220 V.

Please confirm output, filling range, packaging dimensions and utilities for your product and selected configuration before ordering.

Related Machines

Share your product and packaging requirements so we can help compare suitable configurations.

Request a Quote

For machine selection and a quotation, please tell us your product, packaging dimensions, filling quantity, required output and destination country. Include a packaging drawing or sample photo if available.
